Administering Mirantis k0rdent Enterprise#

Before you start working with Mirantis k0rdent Enterprise, it helps to understand a few basics.

How Mirantis k0rdent Enterprise works#

Mirantis k0rdent Enterprise has several important subsystems, notably:

  • KCM - k0rdent Cluster Manager: KCM wraps and manages Kubernetes Cluster API (ClusterAPI) and lets you treat clusters as Kubernetes objects. Within a Mirantis k0rdent Enterprise management cluster, you'll have a ClusterDeployment object that represents a deployed cluster, with Machine objects, and so on. When you create a ClusterDeployment, Mirantis k0rdent Enterprise deploys the cluster, when you delete it, Mirantis k0rdent Enterprise deletes it, and so on.
  • KSM - k0rdent State Manager: KSM wraps and manages several interoperating open source projects such as Helm and Sveltos, which lets you treat services and applications as Kubernetes objects.

Together, KCM and KSM interoperate to create a complete, template-driven system for defining and managing Internal Development Platforms (IDPs) made up of suites of services, plus a cluster and its components as realized on a particular cloud or infrastructure substrate.

  • ClusterAPI providers: ClusterAPI uses providers to manage different clouds and infrastructures, including bare metal. Mirantis k0rdent Enterprise ships with providers for AWS, Azure, OpenStack and vSphere, and you can add additional providers in order to control other clouds or infrastructures that ClusterAPI supports.

  • Templates: When you create a cluster, that cluster is based on a template, which specifies all of the various information about the cluster, such as where to find images, and so on. These templates get installed into Mirantis k0rdent Enterprise, but they don't do anything until you reference them in a ClusterDeployment that represents an actual cluster.

    graph LR;
    subgraph Infrastructure
        WN1["ClusterDeployment Worker Node"]
        CP["ClusterDeployment Managed Server Control Plane"]
        WN2["ClusterDeployment Worker Node"]
    end

    subgraph "Mirantis k0rdent Enterprise Mgmnt Cluster"
        CT["Cluster Template"]
        P["Provider"]
    end

    CP -->|Controls| WN1
    CP -->|Controls| WN2
    CT -->|Defines| CP & WN1 & WN2
    P -->|Provisions| Infrastructure

    Mirantis k0rdent Enterprise can also manage these clusters, upgrading them, scaling them, or installing software and services.

  • Services: To add (or manage) services, you also use templates. These ServiceTemplate objects are like ClusterTemplate objects, in that you install them into the cluster, but until they're actually referenced, they don't do anything. When you reference a ServiceTemplate as part of a ClusterDeployment, Mirantis k0rdent Enterprise knows to install that service into that cluster.

    graph TB;

    subgraph "Mirantis k0rdent Enterprise Mgmnt Cluster"
        ST["Service Template"]
    end

    subgraph Infrastructure
        CP["ClusterDeployment Managed Server Control Plane"]

        subgraph WN1["Worker Node"]
        POD1[App]
        end

        subgraph WN2["Worker Node"]
        POD2[App]
        end
    end
    CP -->|Controls| WN1
    CP -->|Controls| WN2
    POD1 -->|Defined By| ST
    POD2 -->|Defined By| ST

    These services can be actual services, such as Nginx or Kyverno, or they can be user applications.

How Credentials work#

Of course you can't do any of this without permissions. As a human, you can log into, say, AWS, and tell it to create a new instance on which you are going to install Kubernetes, but how does Mirantis k0rdent Enterprise get that permission? It gets it through the use of Credential objects.

When you create a ClusterDeployment or deploy an application, you include a reference to a Credential object that has been installed in the Mirantis k0rdent Enterprise management cluster. Depending on whether the target infrastructure is AWS, Azure, or something else, that Credential might reference an access key and secret, or it might reference a service provider, but all of that gets abstracted out by the time you get to the Credential, which is what you'll actually reference.

graph LR;
    Secret["Secret
    (includes Provider-specific passwords
    secret keys, etc.)"] --> ClusterIdentity["ClusterIdentity
    (Provider-specific)"];
    ClusterIdentity --> Credential["Credential"];

By abstracting everything out to create a standard Credential object, users never have to have access to actual credentials (lowercase "c"). This enables the administrator to keep those credentials private, and to rotate them as necessary without disturbing users or their applications. The administrator simply updates the Credential object and everything continues to work.

You can find more information on creating these Credential objects in the Credentials chapter.

Mirantis k0rdent Enterprise and GitOps#

At its heart, Mirantis k0rdent Enterprise is a Kubernetes-native way to declaratively specify what should be happening in the infrastructure and have that maintained. In other words, if you want to, say, scale up a cluster, you would give that cluster a new definition that includes the additional nodes, and then Mirantis k0rdent Enterprise, seeing that reality no longer matches the definition, it will reconcile the difference.

In some ways this way of working is similar to GitOps, in which you commit definitions and tools such as Flux or ArgoCD ensure that reality matches the definition. We can say that Mirantis k0rdent Enterprise is GitOps-compatible, in the sense that you can (and should) consider storing Mirantis k0rdent Enterprise templates and YAML object definitions in Git repos, and can (and may want to) use GitOps tools like ArgoCD to modify and manage them upstream of Mirantis k0rdent Enterprise itself.

The main difference is that Mirantis k0rdent Enterprise's way of representing clusters and services is fully compliant with Kubernetes-native tools like ClusterAPI, Sveltos and Helm. So you could, if you needed to, port much of what you do with Mirantis k0rdent Enterprise templates and objects directly to other solution environments that leverage these standard tools.

The Mirantis k0rdent Enterprise initialization process#

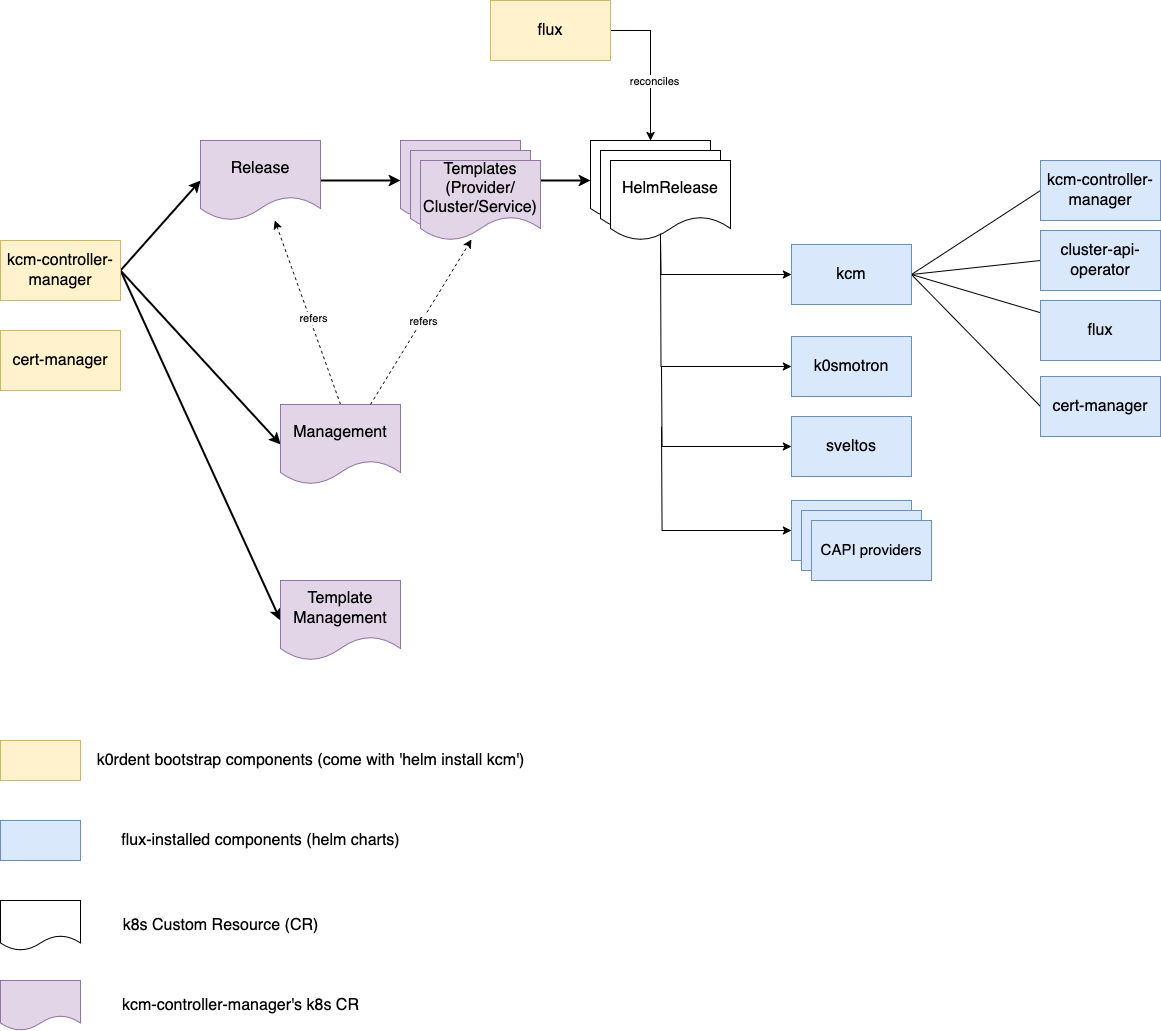

Mirantis k0rdent Enterprise initialization process

The process#

The Mirantis k0rdent Enterprise initialization process involves tools such as Helm and FluxCD.

  1. helm install kcm brings up the bootstrap components (yellow in the above diagram).
  2. kcm-controller-manager sets up webhooks to validate its CustomResource objects, then cert-manager handles the webhooks’ certificates.
  3. kcm-controller-manager generates a Release object corresponding to the KCM helm chart version.
  4. kcm-controller-manager (or rather the release-controller inside it) generates template objects (ProviderTemplate/ClusterTemplate/ServiceTemplate) corresponding to a Release to be further processed.
  5. kcm-controller-manager generates a HelmRelease object for every standard template. Note that this includes the KCM helm chart itself.
  6. Flux (source-controller and helm-controller pods) reconciles the HelmRelease objects. In other words, it installs all the helm charts referred to in the templates. After this point, the deployment is completely controlled by Flux.
  7. kcm-controller-manager creates a Management object that refers to the above Release and the ProviderTemplate objects. The Management object represents the Mirantis k0rdent Enterprise management cluster as a whole. The management cluster Day-2 operations (such as upgrade) are executed by manipulating the Release and Management objects.
  8. kcm-controller-manager generates an empty AccessManagement object. AccessManagement defines access rules for ClusterTemplate/ServiceTemplate propagation across user namespaces. Further, the AccessManagement might be edited and used along with admin-created ClusterTemplateChain and ServiceTemplateChain objects.

This Administration Guide provides information on:
